A Treatise on Why Bioactive Honey Farming Requires a Single, Scale-Spanning Method
A review of the patent’s design logic, from enclosed experimental cells through open transitional environments to open-air permacultures of 500-plus hectares, with anticipated objections answered from the specification itself.
A Note on Sourcing and Method
This treatise is built directly from the published international (PCT) specification WO2019033162A1, “Bioactive Honey Production Environment and Method,” inventor David Munday, priority application AU 2017903257 (filed 15 August 2017), international application PCT/AU2018/050862 (filed 14 August 2018), published as WO2019033162A1 on 21 February 2019. This is the international publication from which the wider patent family descends, including the granted AU2018317497B2, GB2582454B, CA3072599C, and the corresponding US divisional and continuation filings (US10893665B2, US12004488B2), all of which share the same background, detailed description, and worked examples as the WO2019033162A1 text used here.
A targeted search did not surface any independent, published third-party critique of this specific publication. No journal commentary, no opposition proceeding, no litigation. Rather than invent critics that do not exist, this treatise instead poses the objections that a patent examiner, a competing apiarist, or a skeptical scientist would naturally raise against a claim of this scope, and answers each one using language and data drawn from the specification’s own background section, detailed description, and worked examples. Where the specification’s claim to being the “only” viable route to industrial-scale bioactive honey is itself an advocacy position taken by the applicant, not an independently verified scientific finding. This is flagged rather than glossed over.
1. What the Patent Actually Claims
The field of the disclosure is bioactive honey production from a managed “flora cell”, a bounded foraging zone stocked with two deliberately co-located plant populations, for use in indoor, outdoor, and hybrid environments, and expressly aimed at industrial-scale output rather than the small hobbyist apiary.
The problem the specification identifies is a biological mismatch. The nectar sources that yield genuinely bioactive honey, principally Leptospermum species, whose nectar contributes the methylglyoxal (MGO) responsible for long-lasting antibacterial activity, tend to produce low-protein pollen. A bee that forages only in a Leptospermum stand risks running short of the protein and energy it needs to fly home and maintain the hive, which caps productive foraging at very close range and leaves wild or lightly managed stands unable to support the population densities industrial output requires.
The specification’s proposed solution is to interleave that bioactive population with a second, deliberately chosen nutrition population, commonly Corymbia maculata (spotted gum), heather, or protein-rich legumes such as Vicia faba or Lucerne, in a controlled numerical or biomass ratio, sized and positioned so that foraging bees pick up both the bioactive nectar and the protein they need to return to the hive without materially depleting the bioactive nectar itself. The central claim then binds structure, botany, and apiary management together with a yield-prediction relationship:
Maximum bioactivity per volume = f [(R · Pn / Nn) · Fn]
where R is the radius of the foraging cell, Pn the number of bioactive plants, Nn the number of nutrition plants, and Fn the number of hives. The claimed method is not a single fixed layout, it is this relationship, applicable at any scale from a single dome to hundreds of hectares.
1.1 What “Hive” Is Permitted to Mean at Industrial Scale
The specification is deliberately loose on this point, and the looseness matters for the industrial-scale argument. Its own definitions section states that “hive” refers simply to the nesting place of the bees or other insects producing the honey, and explicitly refuses to limit that term to any particular kind of man-made construction. Naturally formed structures, wild nests, and cell-housed colonies are all treated as “hives” on equal footing.
Nothing in that definition caps the size or architecture of a man-made hive. The specification’s own prior-art discussion of US 4,346,490 (Katz), a honey-producing cell with vegetation and hives housed inside a building, is treated as a known precedent for building-housed apiculture, not as something the disclosure is trying to distinguish itself away from on the housing question. Consistent with that, the specification already speaks in places of a “hive complex” (as well as Example 2’s 20,000–80,000-bee complex) rather than a single box.
Read at industrial scale, there is nothing in the specification’s own wording that would exclude a “hive” from being a large, purpose-built industrial structure housing dozens or hundreds of colonies under one roof - climate-controlled, served by internal or external foraging cells, and functioning as the central node (the point at which R is measured from) for one or more of the flora cells described throughout the disclosure. That reading is an extension the specification does not spell out explicitly, but it is not foreclosed by the text, and it is the natural endpoint of scaling the hive-complex concept described for the 50-hectare dome facility up from a single dome to a full production facility.
2. The Continuum: From Enclosed Experimental Cell to Open-Air Permaculture
The feature of the specification most worth emphasising, and the one that most directly supports its claim to industrial applicability is that it does not describe one apparatus. It describes a single governing design principle expressed across a graduated continuum of enclosure, from fully sealed research-scale cells to landscape-scale open permacultures, with every intermediate degree of bee freedom available as a management variable.
2.1 Level One: The Enclosed Experimental Cell

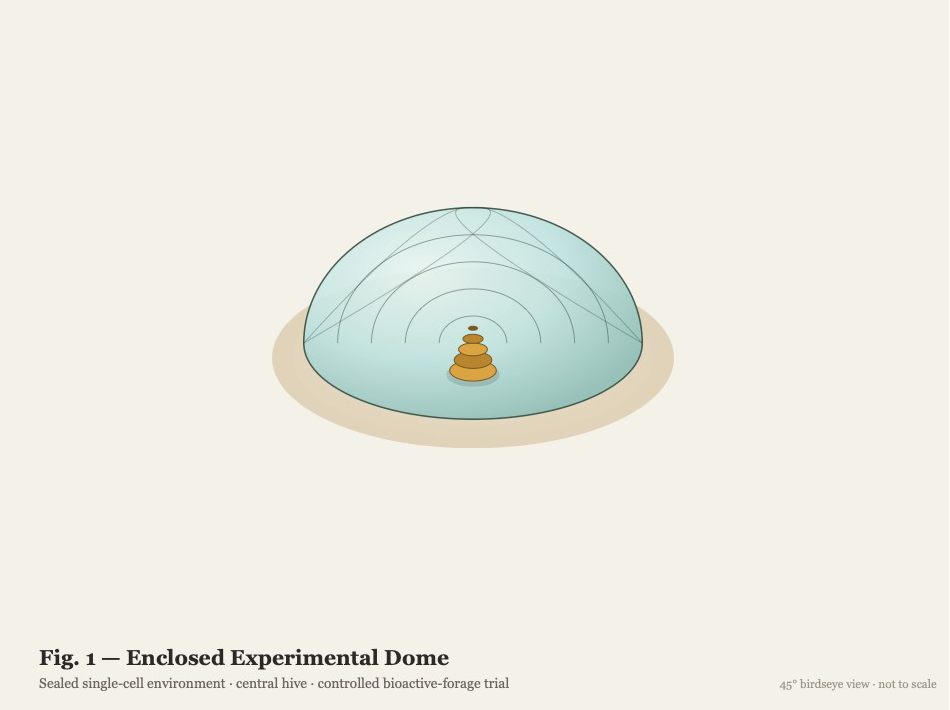

At the most controlled end of the continuum sits the domed apiculture environment described in the specification: a framework covered by insect-proof mesh or openable glass panels, air-conditioned or servo-controlled, inside which nectar-source and nutrition plants are grown in suspended, soil-filled containers on cables, accessed by aerial walkways. Bees in this configuration are physically prevented from leaving. This is the laboratory condition. Every variable (light, humidity, plant ratio, species mix, hive population) is adjustable independently, making it the natural setting in which the yield-prediction formula can first be calibrated against measured MGO output.
2.2 Level Two: Transitional Environments Where Bees Come and Go Under Managed Health

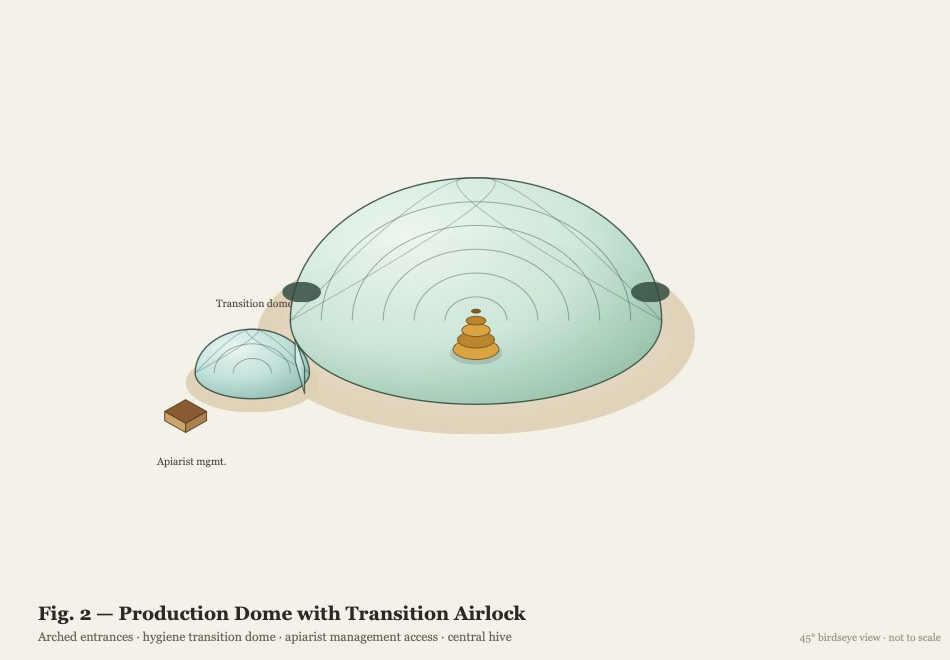

The middle of the continuum is where the specification’s design logic becomes distinctive. One embodiment places a controllable domed zone inside a larger external nutrient plantation, connected by arch-like openings through which bees pass freely between the regulated interior and the comparatively unregulated exterior, foraging the bioactive interior population on the way out and the protein-rich exterior population on the way back.
Another embodiment develops this into a working industrial facility: a 25-metre-radius, 32-metre-high elliptical dome at the centre of a 50-hectare zone, holding a hive of roughly 500,000 bees and an internal Leptospermum-to-nutrient ratio of 1.03:1. Movable side panels stay closed through winter or extreme weather, confining the bees, and open when conditions allow, releasing them into a surrounding 375-metre transition zone planted at a deliberately lower ratio (0.72:1) so that the relatively greater density of nutrient plants there draws bees back toward the hive rather than letting them wander into the unmanaged land beyond.
A further embodiment offers a variant of the same principle in a natural basin, with the dome’s opening and closing again used to trade off bee containment against extended foraging opportunity.
This is the level at which “managing bee health while leaving them free to come and go” is not a slogan but an engineered mechanism: the ratio gradient between the inner and outer zones, combined with the timing of panel opening, is what keeps free-ranging bees productively tethered to the hive instead of dispersing.
2.3 Level Three: Fully Open External Permacultures
At the far end of the continuum the enclosure disappears altogether. The specification describes a highlands tableland system dominated by a large Leptospermum matrix on acidic, north-facing soil, ringed by cultivated Corymbia maculata woodland and lowland nutrient groves, with hives sited centrally. The peripheral placement of nutrient species is used to induce bees to fly out through the bioactive matrix, gather nectar en route, replenish protein at the periphery, and carry that nectar home on the return leg.
Another embodiment shows the same logic applied to a fenced land division with no covering structure at all. Roughly 300,000 bees are simply released into a 2,000-metre-radius planted cell, matching the known maximum foraging range of European honey bees, supplied with water points, and left to forage and return “without human intervention.” Another describes a facility extending over 50 hectares with nutrient species planted beyond the controlled zone entirely.
A 2,000-metre foraging radius, applied as the circular cell described above, already encloses just over 1,250 hectares in principle, so the disclosure’s own numbers comfortably span everything from the 50-hectare dome-and-transition facility described above up through intermediate 200-plus-hectare open permacultures, tiling multiple hive complexes across the land at the radius described in below, to the 500- hectare tableland matrix described above. A 200-plus-hectare open-air permaculture sits squarely inside this range: it is large enough to accommodate several radius-bound cells and hive complexes on the open-permaculture model described above, each independently sized to the 2 km foraging limit, without needing any structural covering at all. The ratio-and-periphery logic that keeps bees productively tethered to their ownhive complex is what does the work, not enclosure.
2.4 Bee Conformity: Why a Larger Radius Produces More Uniform Foraging
A further consequence of the design that the worked examples support, though the specification does not use this exact phrase, is that conformity of foraging behaviour to the intended species ratio improves as the cell radius, and with it, the number of plants and individual foraging trips sampled increases. The specification’s description of a Levy-flight foraging path for a single bee is erratic by design; no individual bee’s route matches the planted ratio precisely. But the yield formula is not built on a single bee’s path, it is built on the aggregate behaviour of 20,000 to 80,000 foraging bees sampling a matrix that has been deliberately laid out, row by row or ring by ring, in a fixed proportion of bioactive to nutrition species.
As the radius R grows, the number of individual foraging trips contributing to the hive’s aggregate nectar and pollen load grows with it, and the erratic, path-level variance of any one bee is increasingly swamped by the sheer number of trips sampling the same underlying ratio. The larger the cell, in other words, the more the hive’s collective foraging output converges on, conforms to, the ratio the planting design intended, rather than being skewed by the idiosyncratic route of a handful of bees.
Smaller, tightly enclosed cells such as the research dome embodiment are, by the same logic, the setting where individual foraging variance has the most influence on outcome, useful for close observation and calibration, but inherently less representative of how the hive will behave once the cell is opened out to the radius an industrial permaculture requires.
3. “Every Combination Is Possible” - Modularity as the Inventive Step
What ties the three levels together, and what the specification leans on to justify calling its scope industrial, is that every structural and biological parameter in the system is independently tunable, and the same governing relationship predicts yield regardless of which combination is chosen. The specification demonstrates this modularity along at least four axes:
- Ratio: the Leptospermum-to-nutrition ratio is shown at 1:1 (the general ideal, with a working range of 0.70 to 1.25), at 10:6 for European honey bees specifically, at 1.03:1 inside the central dome, at 0.72:1 in its surrounding transition zone, and at 25/25/50 percent heather/Corymbia/Leptospermum in the same design variable, retuned for different bee species, structures, and objectives.
- Enclosure: mesh netting, transparent glass panels, servo-operated openable panels, a fixed dome, an open tunnel structure, a natural basin with a partial dome, and no structure whatsoever are all presented as interchangeable implementations of the identical cell concept.
- Botany: multiple Leptospermum species and subspecies, staggered by flowering season , are combined with a menu of nutrition species, Corymbia maculata, heather, Vicia faba, Lucerne/alfalfa, clover, so that flowering coverage can be extended from a few months to nearly year-round, and the nutrient source substituted for local soil, climate, or bee-species conditions.
- Bee management: hive population, selective breeding or removal of bees with atypically short or long foraging ranges, artificial pollen dispersal, and direct dietary supplementation, specifies a year-round 60 percent crude-protein Lucerne supplement, are all offered as additional levers, layered on top of the planting design rather than replacing it.
Because these axes are independent and the yield relationship expresses them as a single proportionality, the specification’s position is that moving from a domed research cell to a 200-plus-hectare open permaculture, and beyond that to the 500-acre tableland scale described above, is not a change of method, it is the same method with different parameter values, and, per the bee-conformity effect described, larger radius tiers should if anything produce output that tracks the design ratio more reliably, not less. That is the basis for the claim that the design “scales,” rather than needing to be reinvented at each larger tier.
4. Why the Patent Argues It Is the Only Route to Industrial Scale
The specification’s background section reviews nine prior references and, in each case, identifies a gap that, in the applicant’s argument, leaves the nutrition/bioactivity conflict unsolved at scale:
- US 5,277,647 (Earl): lays out a plantation of perennially flowering plants but does not provide for bee nutrition at all.
- NSW Agriculture’s Somerville guide: rates plants for honey and pollen yield but doubts that on-farm plantings can meaningfully benefit commercial beekeeping, and stops short of combining species for nectar and pollen together.
- US 4,346,490 (Katz): proposes a building-housed honey cell but without addressing bioactive specificity or a nutrition ratio.
- USDA’s Oertel handbook: notes that some beekeepers feed pollen supplements, but does not connect that need to deliberate co-planting.
- A 2015 florist’s guide (Hughes): lists bee-attracting species without distinguishing a primary honey source from a nutrition supplement.
- A University of Wisconsin-Extension guide (Deutsch): recommends a variety of blooms through summer but gives no supplementation mechanism.
- Boffa Miskell’s Manuka & Kanuka Plantation Guide: identifies the exact problem, that bees need ongoing access to quality nectar and pollen beyond manuka/kanuka flowering, or risk malnutrition and disease, but, in the specification’s characterisation, does not propose a solution to it.
- Russian publication RU 2299560: discloses a domed structure for climate isolation, not for nutrition management.
- US 4,077,157 (Bradner): uses alternating plant strips for cross-pollination, not honey production.
The argument built on this survey is that no prior reference combines a nutrition population selected and ratioed specifically to offset a named bioactive species’ protein deficiency, with a cell radius matched to the foraging range of the resident bee species, across enclosure types. Without that combination, the specification argues, industrial-scale bioactive honey production runs into the same ceiling described in the Boffa Miskell reference it cites: bees either over-concentrate on the most attractive (often non-bioactive) flowers, or become malnourished trying to subsist on a low-protein bioactive source alone. Whether this amounts to the only possible engineering solution to that ceiling is the applicant’s inventive-step argument, not an independently adjudicated fact. No court or patent office opposition has tested it.
5. Anticipated Criticisms, Answered from the Specification
The five objections below are the ones a patent examiner, a competing apiarist, or a skeptical scientist would most naturally raise. Each is paired with the specification’s own answer.
Objection 1: Bees are wild foragers; no patent can claim to ‘manage’ their behaviour deterministically.
The specification does not claim deterministic control. It explicitly depicts foraging as a Levy-flight pathway, an erratic, probabilistic route, and the detailed description concedes that a perfectly identical foraging range for every bee in a hive is not practically attainable, with day-to-day variance driven by weather and feeding conditions. What is claimed instead is an incentive architecture: nutrient-species density gradients, peripheral placement, and, where needed, selective breeding or removal of bees whose foraging range is too short or too long, used to bias probabilistic foraging toward the desired pattern rather than to fix it exactly.
Objection 2: This is just companion planting, obvious in light of existing bee-forage literature.
The specification’s own prior-art review addresses this directly, reference by reference, arguing that while several sources recommend varied plantings for general bee attraction, none discloses selecting a second population specifically to compensate for a named protein deficiency in a chosen bioactive nectar species, at a density and placement matched to a calculated foraging radius. The Boffa Miskell reference is used almost as an admission against interest: it names the problem without proposing the fix.
Objection 3: Enclosed dome production and open-field permaculture are different processes; one specification cannot credibly cover both.
The transitional and industrial-scale embodiments described above are presented as the hinge disproving this: a single cell with an inner, enclosed ratio and an outer, open ratio, joined by openable panels, operating under one yield formula. The worked examples span the full range, a fully domed cell, a hybrid dome-plus-open-matrix facility, and fully open, unenclosed cells, with the same R·Pn/Nn·Fn relationship applied in each. The claim to a single method rests on that structural continuity, not on treating enclosure as incidental.
Objection 4: Real bee foraging ranges (a few kilometres at most) make claims of 500-plus-hectare production implausible for a single hive.
The specification does not rely on one hive covering hundreds of hectares. It caps effective foraging at roughly 2 kilometres (bees may fly up to 4 km but typically operate within a 2 km radius), and scales area not by stretching that radius but by tiling multiple hive complexes across the larger permaculture. The large tableland system and the 50-hectare facility described above both distribute several hive positions through the matrix rather than asking a single hive to forage the entire estate. The definition of “hive” can also be a building that houses hundeds of the commonly considered hive.
Objection 5: The +350 MGO threshold for ‘bioactive’ honey is a commercial convention, not a scientific constant, so the whole design target is somewhat arbitrary.
This is fair, and the specification does not defend the threshold itself. It adopts +350 MGO as the working industry benchmark for bioactivity and builds its ratio and radius calculations around maximising output against that number. The design method (ratio-tuning against a measurable bioactivity output) would transfer to a different threshold or a different bioactive marker, but the specification text does not argue that point; it is a genuine limitation of scope rather than one answered by the disclosure.
6. Conclusion
Read as a whole, the patents strongest claim to industrial relevance is architectural rather than botanical: it is not merely a planting list, but a single scalable relationship between cell radius, plant ratio, and hive count that is shown to hold, in worked examples, inside a sealed research dome, across a semi-open transitional facility where bees are free to come and go while their nutrition is managed by ratio and panel timing, and across open-air permacultures running from 200-plus hectares up to the 500 hectares tableland scale described above.
The specification’s own framing, every enclosure type, every ratio, every species combination, and, on its own broad definition, every scale of “hive” from a single box to an industrial housing structure, presented as interchangeable parameters within one formula, is what supports the assertion that the same method underlies small experimental enclosures and industrial-scale landscapes alike. The bee-conformity effect of adds a further reason to expect this to hold at scale rather than break down: the larger the radius and the more foraging trips it samples, the more closely the hive’s aggregate output should track the ratio the design intended, rather than drifting further from it.
Whether that makes it the only possible method of reaching industrial-scale bioactive honey production, as opposed to the best-documented one currently on the public record, is a stronger claim than the specification text itself can prove from within its own four corners. That would require testing against production data from other operators, none of which was located in this review. What the specification does establish, on its own terms, is a coherent, internally consistent design logic that spans the entire continuum the question asked about, with each of its own anticipated weak points addressed by a specific ratio or worked example rather than left to inference.
